Syringe Filter
Filtration Products
Why need for filtration
Sample and mobile phase filtration are simple, economical practices to extend the life of chromatography consumable. A basic HPLC system consists of solvent reservoir, pump,injector, column, detector, and data recording system. Particles and microbial not removed by filtration interfere with nearly every system component.
Mobile phase filtration
Mobile phase filtration can reduce the possibility of sieve blockage, accessories pollution, valve damage, capillary occlusion, peak distortion, and the occurrence of interfering peaks and baseline noise.
Columns
Significant problems with HPLC columns are chemical absorption, blocked frits and channel voids. Chemical changes are prevented with guard columns. Voids are created by particulate matter and pressure shock. If poor peak shapes become evident by badly tailing and splitting, without a change in retention time, blocked frits or a column void has occurred.
Daily maintenances commented to protect columns and whole system include:
1.Filtering solvents through filter membrane.
2.Filtering samples through syringe filter.
3.Utilizing a 0.5 μm in-line filter to trap injector and pump particulates.
Product Introduction
Polyethersulfone(PES)
Hydrophilic membranes, high flow rate and high throughputs, low protein binding, low in extractables, and can be used to remove small particles, bacteria, viruses and fungi from aqueous phase. Normally used with pH range 3-12.
Nylon
Excellent chemical stability and flexibility, durable, hard to tear, can be sterilized in 121 o C. Suitable for filtration of aqueous and most organic solvents, such as the water filtration of electronic, microelectronic, semiconductor industry, and also the filtration of culture media, drugs, drinks, and high-purity chemical. Normally used with pH range 3-14.
Hydrophobic Polytetrafluoroethylene (PTFE)
Broad solvent chemical compatibility, excellent particle retention, and compatibility with various sterilizing methods. Suitable for both liquid and gas filtration. Normally used with pH range 1-14.
Hydrophilic Polytetrafluoroethylene (PTFE)
Broad chemical resistance, excellent particle retention, and compatibility with various sterilizing methods. Suitable for the filtration of aggressive organic solvents, water solution containing strong acids or alkalis, and mixed solution of both. Normally used with pH range 1-14.
Hydrophobic Polyvinylidene fluoride (PVDF)
High mechanical and tensile strength, and have broad chemical and temperature resistance. Not suitable for the filtration of acetone, DMSO, THF, etc. suitable for the filtration of gas, steam and high temperature liquids. Normally used with pH range 2-13.
Hydrophilic Polyvinylidene fluoride (PVDF)
Low protein binding, and have broad chemical and temperature resistance. The chemical compatibility of the membrane includes aggressive acids and alcohols. We do not recommend using this membrane for the filtration of acetone, DMSO, or bases > 6N. The filtration of dilute protein samples is recommended. Normally used with pH range 2-13.
Cellulose Acetate (CA/CN)
Membranes exhibit ultra-low protein binding and are broadly used in the filtration of biological samples. This membrane is excellent for filtration of tissue culture media, general biological sample filtration and clarification.
Glass Fiber (GF)
Made of inert borosilicate glass and have a nominal 1.2µm pore size. They are commonly used with highly viscous samples or samples containing high concentrations of particulate matter (e.g., food analysis, biological samples, soil samples, fermentation broth samples, removal of yeasts, molds, etc.).
How to choose a filter

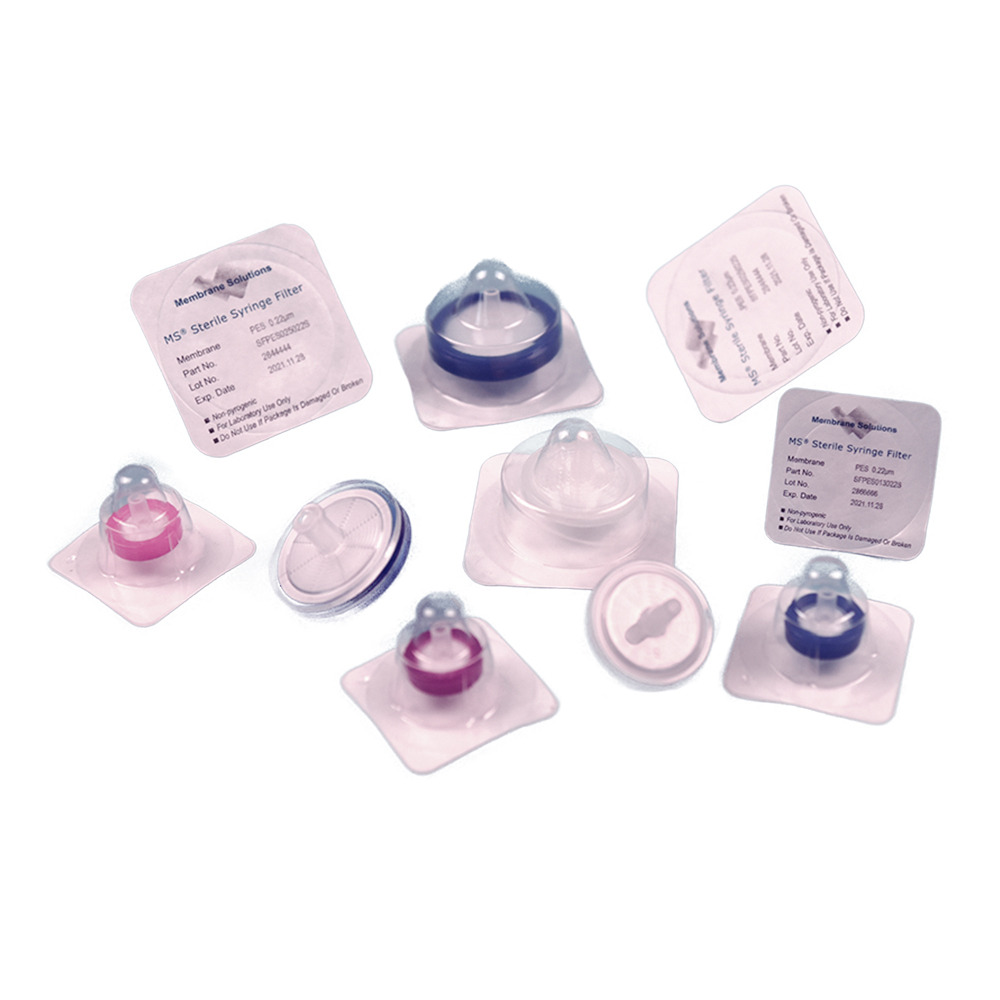

MS® Sterile syringe filter
MS® Sterile syringe filter are purpose-built with feature designed to bring the highest levels of performanced and purity to your research. We incorporate a variety of membranes to offer separation and purification solutions for the majority of your laboratory needs.
Cellulose Acetate(CA)
Polyethersulphone(PES)
Polyvinylidene fluoride(PVDF)
Polyfluortetraethylene(PTFE)
Mixed Cellulose Ester(MCE)
Polyesteramide(Nylon)
- MS®sterile syringe filters are available with:
- Each filter is individually packed and sterilized by Gamma Radiation.
- Every syringe filter is printed with expiry date for easy QC tracking
MS® Non-Sterile syringe filter
MS® syringe filters are simply quality filters, well packaged, and offered at a fair and competitive price. Typical applications are clarification, sterile filtration, sample preparation, sterile venting and medical applications. The syringe filters are available in many different pore sizes and with several hydrophilic or hydrophobic membrane materials.ISO9000 certified manufacturing is carried out to the highest standards, in certified clean room conditions, using the latest manufacturing technology to ensure a high quality, consistent product. All the syringe filters are certified by HPLC Extractable Test.
- Application compatibility: Broad range of filtration media meets diverse application needs
- Minimum sample hold-up: Syringe filter's housings are specifically designed to maximize sample recovery
- Convenience: Each unit is clearly marked with an identifying code to denote pore size, membrane material
- Sterility: Filters can be purchased pre-sterilized by Gamma radiation and individually packaged
Ordering Informations
|
Syringe Filter |
Diameter(mm) |
Pore Size(µm) |
|
Nylon Syringe Filter |
4, 13, 17, 25, 30 |
0.1, 0.22, 0.45, 1.0, 3.0, 5.0 |
|
PTFE Syringe Filter |
4, 13, 17, 25, 30 |
0.22, 0.45, 1.0, 3.0, 5.0 |
|
Hydrophilic PTFE Syringe Filter |
4, 13, 17, 25, 30 |
0.25, 0.45 |
|
PVDF Syringe Filter |
4, 13, 17, 25, 30 |
0.22, 0.45 |
|
PES Syringe Filter |
4, 13, 17, 25, 30 |
0.1, 0.22, 0.45 |
|
CA Syringe Filter |
4, 13, 17, 25, 30 |
0.22, 0.45, 3.0 |
|
Glass Fiber Syringe Filter |
4, 13, 17, 25, 30 |
0.7, 1.0 |
|
MCE Syringe Filter |
4, 13, 17, 25, 30 |
0.22, 0.45, 3.0 |
|
G-MP Syringe Filter |
25 |
0.22, 0.45 |
|
Sterile Syringe Filter |
4, 13, 17, 25, 30 |
0.1, 0.22, 0.45 |
|
50mm Venting Filter |
50 |
0.1, 0.22, 0.45 |
|
Reusable Syringe Filter |
13, 25 |
- |
**Please contact technical sales or This email address is being protected from spambots. You need JavaScript enabled to view it. for order or additional information.
