CombiFlash NextGen 100
CombiFlash NextGen 100

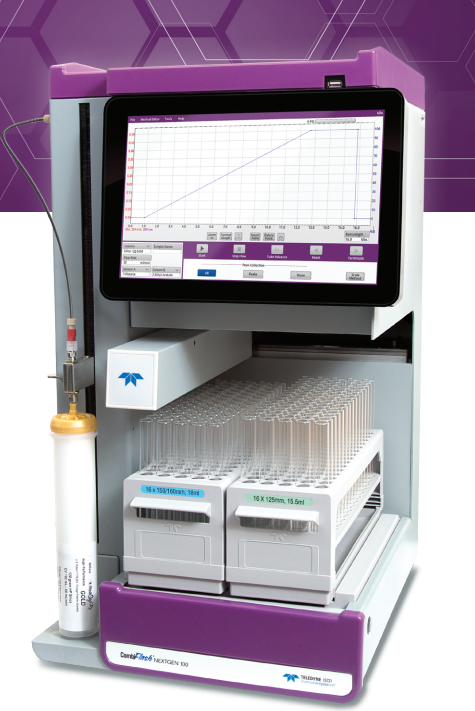

CombiFlash NextGen 100 Flash Chromatography System
The CombiFlash NextGen Flash Chromatography System offers the most options in regards to system configurations. Now there are three different models to choose from based on your budgetary and application needs. The CombiFlash NextGen 100 offers flow rates up to 100 mL/min and operating pressures up to 150 psi (10 bar). This is an economical, basic system designed to perform both normal and reverse phase purifications. The system accepts a variety of collection racks sizes so that purified compounds can be collected in volumes appropriate for the column size being used.
- Straightforward Complete control on one screen
- Compact Designed to take up minimal lab space
- Flexible Configure to meet your specific needs
- Faster New default methods with higher flows and steeper gradients speed up the purification without sacrificing performance
- Greener Conserve solvent with optimized gradients
Features:
- Flow rates from 1 to 100 mL/min
- Operating pressure up to 150 psi (10 bar)
- Choice of UV, UV-Vis ELSD or MS options
CombiFlash NextGen 100
| Flow Rate Range | 1-100 mL/min (Flash & Prep) |
| Sample Loading Technique | Liquid |
| Maximum Pressure | -Up to 150 psi (10 bar) Liquid Load -Lower pressure limits user defined |
| UV and UV-Vis Detection | Variable UV 200–400 nm or Variable UV-Vis 200–800 nm (PDA Technology) |
| Real Time UV Spectral Display | Standard |
| ELSD Detection | Integrated option that can be combined with either UV or UV-Vis |
| Number of Solvents | Binary gradient, 2 solvents |
| Gradient Formation | Low pressure |
| Programmable Gradients | Linear, step, isocratic |
| User Interface | 12” capacitive touch screen |
| Fraction Collector | Internal |
| Real Time Method Editing | Standard |
| Internal Vapor Sensor | Standard |
| Vapor Enclosure for Collection Racks | Optional |
| Certification | TUV |
| Dimensions | 26 x 14.1 x 17 in (66 x 36 x 43 cm) |
|
Weight with ELSD Weight without ELSD |
74 lb (33.6 kg) 61 lb (27.7 kg) |
