Onyx PCX Derivatization Instrument

Now, it is surpassed by the Onyx PCX as the best post-column instrument available on the market. Pickering Laboratories still offers the only instrumentation optimized for the analysis of Amino Acids, Carbamates, Glyphosate, Mycotoxins, Antibiotics and many other applications. Each component is specifically designed to enhance sensitivity and selectivity. Only Pickering Laboratories offers complete application support, including chemicals, columns, methods and post-column systems.

Accuracy, Durability, Speed and Convenience

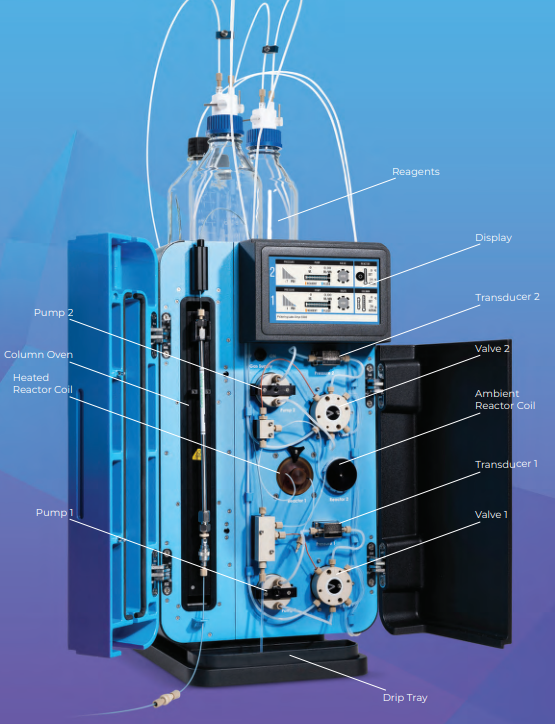

Instrument layout is focused on ease of use, quick monitoring and rapid service.
The electronic syringe pump provides true pulsefree flow for superior sensitivity and consistency. The pump cylinder and head are made from a single piece of inert ceramic for durability and non-reactivity.
Electronic valves eliminate troublesome check valves and allow automated pump flushing.
Quick-change reactor cartridges make application switching easy and replacements fast and inexpensive.
The column oven utilizes circulating air for consistency of heating and quick cooling within 1 °C of setpoint.
The column oven utilizes circulating air for consistency of heating and quick cooling within 1 °C of setpoint.
The Onyx PCX control software allows for precise control of the reagent delivery and conservation.
Pre-programmed testing and maintenance procedures take the guesswork out of instrument care.
Column oven temperature gradient programming improves separation and run times. Only Pickering Laboratories builds post-column systems with this feature.
Works with any HPLC instrument, from any manufacturer.

Electronic Syringe Pumps and Valves

The syringe pump’s cylinder and head are made from a single piece of 99.9% Alumina for ruggedness and non-reactivity. The piston surface is made from PEEK with an inert O-ring seal. The piston seal is protected by an automatic piston wash system that provides long seal life. The programmable flow rates range from 50 ul to 1500 ul/minute with a refill cycle of under 60 seconds. The electronic valve utilizes PEEK and PTFA with a port layout that eliminates cross contamination.

Onyx PCX Control Software

The Onyx PCX is controlled by PCX Control Software, compatible with Windows 7 or newer Windows operating systems. Using the same computer as the HPLC, the PCX Control Software interfaces easily with Agilent OpenLab or communicates with any other modern HPLC using a relay connection.

Reactor

Heated reactor temperature from 5 °C above ambient to 130 °C maximum setpoint
Stability +/- 0.5 °C
Accuracy +/- 1 °C
Thermal safety switch limits temperature to 150 °C to prevent damage
Easy replacement coil cartridges
Range of reactor dwell volumes available, from 0.1 mL to 3 mL
Reaction coil withstands up to 42 bar (600 psi) inlet pressure at 130 °C

Column Heater

Heater accepts 6 or 8 mm OD (0.25 or 0.31 inch) x 50-250 mm in length Column and guard
Temperature holds within ± 1 °C resolution from 5 °C above ambient to 75 °C maximum setpoint
Programmable temperature gradient
Easy access to column compartment and improved tubing guards

Instrument Package and Flow Path

Advanced fluidics valve management system
Completely inert flow path
Easy access to internal components
Standard fittings
Side panels remove easily for service
Integrated reagent reservoir tray compliant with secondary containment requirements

Dimensions

22.4 H x 12.0 W x 19.15 D inches (56.9 x 30.5 x 48.6 cm), instrument with doors closed

Weight

60 lbs or 27 kg for dual-pump systems
50 lbs or 23 kg for single-pump systems

Electrical

Factory configured as either 100-120 VAC, 50/60 Hz, 1.7 A, 200 W or 200-240 VAC, 50/60 Hz, 0.8 A, 200 W
Mains voltage ± 10 % of nominal
Current 5 A maximum
Installation (over voltage) category II, pollution degree 2
Fuses, 2 ea., 5 mm x 20 mm, 6.3 A, 250 VAC, time lag

Environmental

Indoor use only
Altitude up to 6500 ft (1981 m)
Ambient temperature 15 ° – 29 °C
Relative humidity up to 80 % at 31 °C

Reagent Pumps

True pulse-free syringe pump with single piece ceramic barrels
Maximum operating pressure 500 psi (35 bar)
Programmable flow rates of 50 μL to 1500 μL/minute
Refill cycle of 60 seconds or less
Automatic piston wash
Automatic reagent flush cycle
No instrument check valves

Display

LCD display, color 800 x 480 pixels, 153 x 85 mm viewing area
Real time temperature, pressure and critical system alerts shown
Intuitive system status icons

Gas Pressure Manifold and Regulator

Panel-mounted gas manifold
Regulator maintains 3-5 psi (0.3 bar) on reagent reservoirs with 45-75 psi (3-5 bar) source pressure
Safety pressure-relief valve opens at 8 psi (6 bar)
Manifold with anti-siphon valves and two 1/4-28 fittings

Safeguards

In-line check valve prevents reagent back flow into the column when HPLC pressure drops
Replaceable reagent filters to prevent reactor fouling
Post-column system over-pressure protection from pre-calibrated relief valve opens at 500 psi (35 bar) to prevent rupture of the post-column reactor tubing in the event of down-stream blockage
Back-pressure regulator applies 100 psi (7 bar) to the detector flow cell outlet (waste line) to prevent detector noise and precipitation due to out-gassing or boiling
