Fraction Collectors

Teledyne ISCO’s innovative fraction collectors reflect the knowledge that has been gained in over 40 years of experience. Our current lineup of Foxy and Retriever models offer a range of capabilities and capacities to meet practically any need. All feature coldroom-friendly design with moisture-resistant materials.

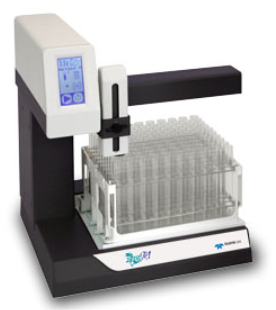

Foxy R1

The one-rack Foxy R1 fraction collector can be adapted to a broad spectrum of applications. The units can distribute fractions into 96 well microplates, standard tube sizes, and bottles. For essentially unlimited volumes, funnel racks can direct fluids to any collection vessel or downstream process.

Standard Features

Collect peaks of interest separately using any combination of slope, level, and time window reliably separates peaks by monitoring detector output, so you don’t have to expend glassware on no-interest effluent
Collect uniform fractions by time, drop count, or pumped volume
Stores up to 8 collection methods
Choice of available racks (specify when ordering).
Coldroom-friendly design
Sturdy cast aluminum frame
Easy to use symbolic touch screen interface
Built-in Ethernet and RS-232 communication capabilities
Faster tube changes
µL delay volume between diverter valve and drop former
Flow rates to 25 mL/minute

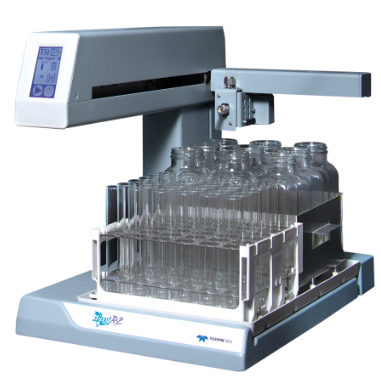

Foxy R2 and Foxy R2 High Flow

The two-rack Foxy R2 fraction collector can be adapted to a broad spectrum of applications. The units can distribute fractions into 96 well microplates, standard tube sizes, and bottles. For essentially unlimited volumes, funnel racks can direct fluids to any collection vessel or downstream process.

The Foxy R2 fraction collector uses two racks with radio frequency identification (RFID) to automatically detect collection racks for easy setup.

Standard Features

Collect peaks of interest separately using any combination of slope, level, and time window reliably separates peaks by monitoring detector output, so you don't have to expend glassware on no-interest effluent
Collect uniform fractions by time, drop count, or pumped volume
Stores up to 8 collection methods
Choice of available racks (specify when ordering).
Coldroom-friendly design
Sturdy cast aluminum frame
Easy to use symbolic touch screen interface
Built-in Ethernet and RS-232 communication capabilities
Faster tube changes
µL delay volume between diverter valve and drop former
Flow rates up to 125 mL/minute

Foxy R1

Dimensions (H x W x D)	14 x 12.25 x 13 in (35.5 x 31.1 x 33.0 cm)
Weight	15.6 lbs (7.1 kg) -- with drip tray, no rack
Maximum Flow Rate	25 mL/min standard;
	125 mL/min with optional accessory package
Operating Voltage	100 - 240 VAC, 50-60 Hz, 1 ampere maximum

Foxy R2

Dimensions (H x W x D)	14.9 x 12.25 x 21 in (37.8 x 31.1 x 53.3 cm)
Weight	22.8 lbs (10.3 kg) -- with drip tray, no rack
Maximum Flow Rate	125 mL/min standard;
	0 - 25 mL/min with optional accessory package;
	1000 mL/min with optional high flow diverter valve
Operating Voltage	100 - 240 VAC, 50-60 Hz, 1 ampere maximum

Foxy R2 High Flow

Dimensions (H x W x D)	12.25 x 15.5 x 21.0 in (31.1 x 39.4 x 53.3 cm)
Weight	22.8 lbs (10.4 kg) -- with drip tray, no rack
Maximum Flow Rate	Up to 1 L/min
Operating Voltage	100 - 240 VAC, 50-60 Hz, 1 ampere maximum
