CD14 COMPARATIVE DISSOLUTION

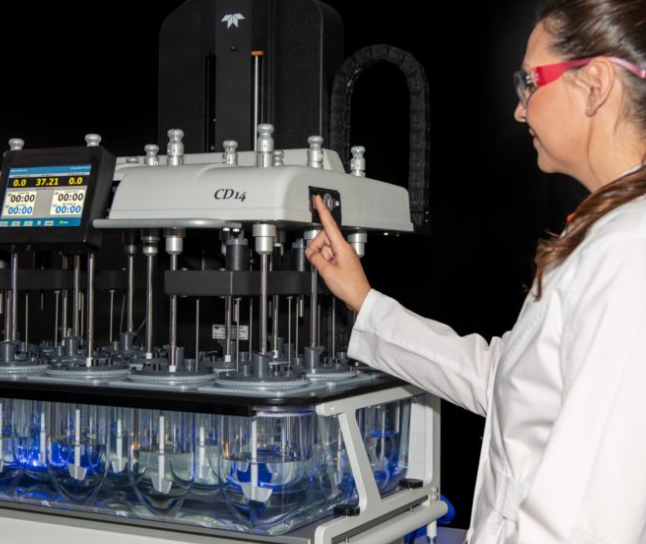

The CD14 Comparative Dissolution Tester runs two methods simultaneously or independently. The 14 stirring positions allow for 6+1 or 12+2 configurations with digital temperature probes at 12 positions able to test two different formulations with separate settings for every parameter under the same temperature conditions.
CD14 Features and Benefits
+ The CD14 provides the smallest footprint in the 14-vessel class: 85 cm W x 61 cm D.
+ Precision vessel centering system exceeds the most demanding enhanced mechanical specifications.
+ Store up to 500 protocols (methods) on-board.
+ Run two different 6-vessel methods simultaneously or one 12-vessel method.
+ Rugged water bath with low-position front port for ease of draining+ Heater/circulator slides out for ease of servicing.
+ Large color touch screen with adjustable tilt angle for operators of different heights.+ Compatible with Apparatus 1, 2, 5, and 6.
+ Spindle speed: 25 rpm to 250 rpm, accurate to ± 1 rpm with displayed resolution 0.1 rpm.
+ Temperature: programmable from 25.0 °C to 50.0 °C with acc
uracy of ± 0.5 °C
+ Digital temperature probes: 10 °C to 60 °C with accuracy of ± 0.1 °C from 30 °C to 55 °C, and displayed resolution of 0.01 °C.
+ Compliant with USP, EP, JP, US FDA Enhanced Mechanical Calibration and ASTM E2503 standards.
+ Seamless integration with CD AutoPlus™ autosamplers and AutoFill™ fraction collectors.
FAST, POWERFUL COMPUTER CONTROL

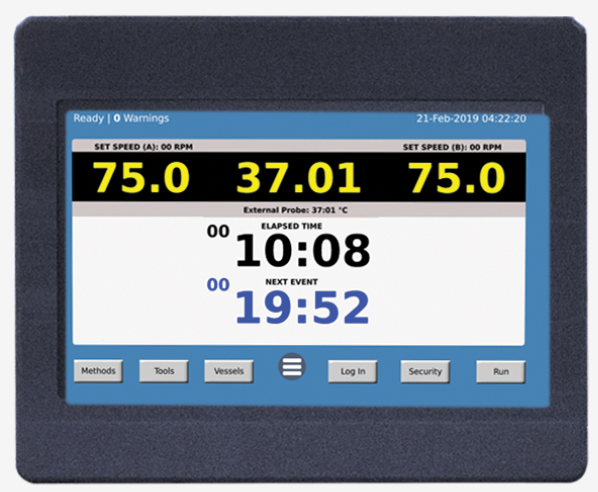

The CD14 is controlled by a fast, powerful computer built into the color touch screen display mounted to the drive head. The adjustable tilt angle accommodates operators of different heights while the Linux-based operating system with its own SQL database responds instantly to user input. An easy-to-use interface includes context-sensitive help; logs for events, errors, test reports, test history, and service; rapid programming of new methods; ability to search database by any combination of fields; import/export including full system backup; programmable alarms for automatic power-on and warm-up; countdown to sampling points; tools including full system diagnostics; and more.
Read more
CD14 Comparative Dissolution Tester Specifications
- Spindle Speed: Range: 25 to 250 rpm
- Accuracy: ± 1 rpm
- Displayed resolution: 0.1 rpm
- Temperature: Programmable
- temperature range: 25.0 to 51.0 °C
- Accuracy: ± 0.5 °C Control: ± 0.1 °C
- Digital Temperature Probes (all probes): Range: 10 to 60 °C
- Accuracy: ± 0.1 °C from 30 – 55 °C
- Displayed resolution: 0.01 °C
- Minimum submersion depth: 25 mm
- Response time: < 45 seconds (normally 30 sec.)
- Weight: Main unit, dry: 118 kg (260 lbs.)
- Main unit, bath and vessels filled with water: 174 kg (383 lbs.)
- Size: Height: 87.6 cm (40.0 in.)
- Width: 67.3 cm (33.5 in.)
- Depth: 58.5 cm (24.0 in.)
- Bath Capacity: With 14 vessels: 41.6 liters (11 gallons)
- Power: Input: 100 – 230 V ± 10%, 50 – 60 Hz, 1.5 A max.
- Output: 24 VDC, 3.75 A, 90 W
Heater Specifications Note: The heater fits under the tester.
- Weight: 4.1 kg (18 lbs.)
- Size: Height: 7.6 cm (3.0 in.)
- Width: 67.3 cm (26.5 in.)
- Depth: 43.3 cm (17.0 in.)
- Power: Input: 100 – 230 V ± 10%, 50 – 60 Hz Power: 700 – 1200 W
