Fusion 6000-X
Fusion 6000-X

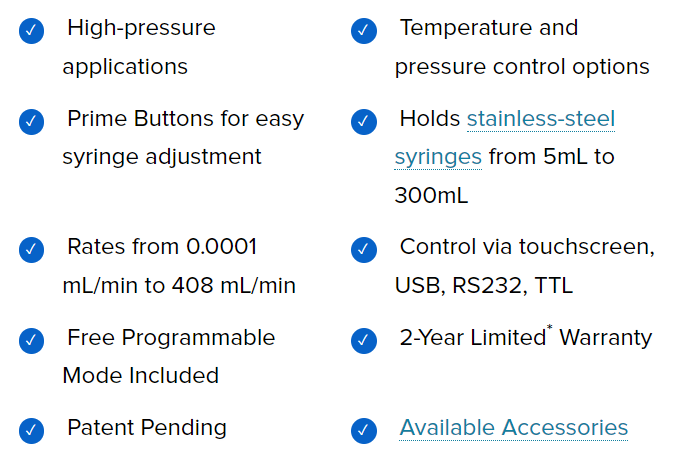

The Fusion 6000-X high-pressure syringe pump is designed for dosing viscous solutions andsemi-solid material against pressure with microfluidic pump precision. The Fusion 6000-X pump has the following unique features: 700 lb linear pushing force, add-on syringe heater, add-on pressure sensor, modular 4 syringe expansion rack, and priming bottoms. These features allow Fusion 6000-X to increase syringe capacity to four, warming the syringe contents, and with pressure monitoring and control. Priming buttons allow adjusting the plunger’s position easily. The all-glass touch screen and heavy-duty mechanical structure, allow the Fusion 6000-X syringe pump to be easy to clean and has high durability for industrial lab environments.
Fusion 6000-X
| Mode | Infuse/Withdraw |
| Accuracy | ± < 0.35% |
| Reproducibility | ± < 0.05% |
| Syringe Size (Min/Max) | 0.5µL to 300mL Stainless Steel Syringe |
| Syringe Type | Plastic, Glass and Stainless Steel Syringe Type Chart |
| Syringe Heating Sleeve Temperature | up to 80°C |
| Syringe Flow Rates | See Syringe Library for Min & Max Flow Rates |
| Minimum Flow Rate | .0001 µL/min (with 0.5µL syringe) |
| Maximum Flow Rate | 408 mL/min (with 300mL syringe) |
| Linear Force | up to 700lbs (318kg) |
| Maximum Pressure | See Max Pressure for Chemyx Syringes |
| Maximum Viscosity | 250,000 cP |
| Display | 4.3 inch LCD Touch Screen |
| Connectivity | USB-B, RS232 and TTL Ports |
| System Dimensions | 11 x 10 x 6.9 inches (28 x 26 x 14 cm) |
| Power | 110/220 VAC |
| Weight | 19lbs (8.61kg) |
| Motor Drive | 1.8˚ MicroStepper Motor |
| Step Resolution | 0.0938 µm/step |
| Operating Temperature | 4°C to 40°C (40°F to 104°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 20% to 80% RH, non-condensing |
| Installation Category | II |
| Regulatory Compliance | CE, RoHS, REACH, ETL |
